Due to the exhaustion of economic reserves, we have the following bucketline dredges for sale. These are good, well maintained modern dredges built only in the 1980's.

The design of the dredges, especially in respect of the maximum digging depth, bucket capacity and treatment plant can be varied to suit the client's requirements.

OCIE will undertake to dismantle the dredge and transfer (ship) the dredge assemblies to the country of operation. OCIE personnel will undertake the re-erection and commissioning of the dredge at the mining site. Training and operation of the dredges can also be provided.

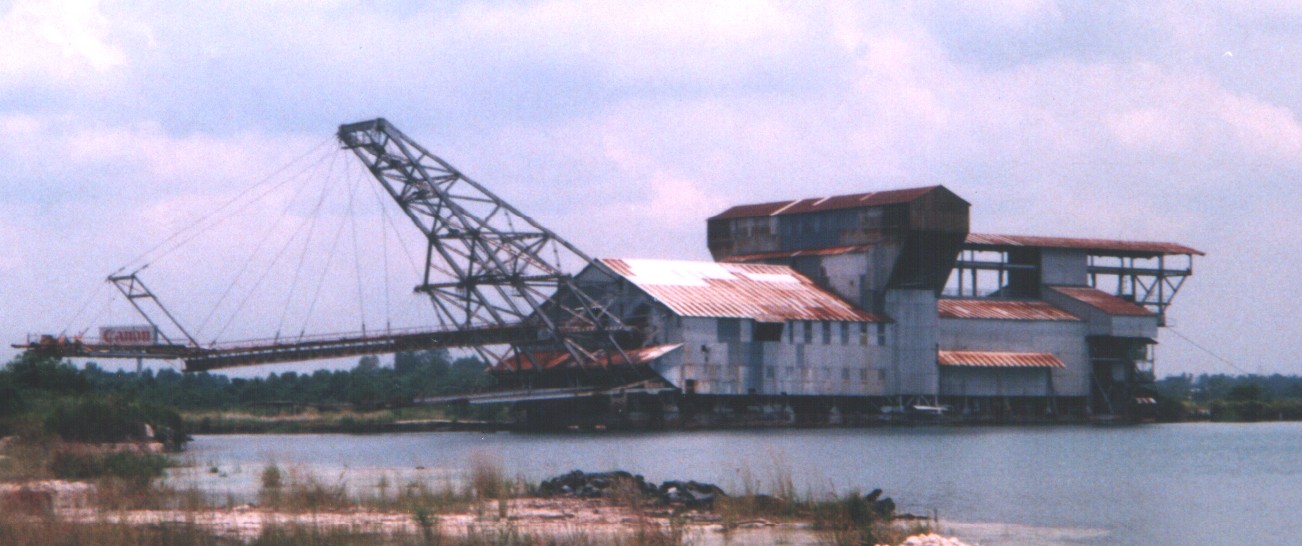

Sri Banting Dredge

First Built

Capacity

795 cu m per hour

680 litres (24 cu ft)

Trommel Screens

2 units - 3 m (10 ft - 0 in) dia screens

Primary Jigs

5 units - 7.6 m (25 ft - 0 in) IHC Circular Jigs

Secondary Jigs

10 units - 4 cells Yuba Jigs

Tertiary Jigs

5 units - 2 cells Yuba Jigs

Tailings Disposal

By Pumping

86.0 m (282 ft - 0 in)

22.0 m (74 ft - 0 in)

29.3 m (96 ft - 0 in)

4.0 m (13 ft - 3 in)

5282 kW (7095 HP)

5500 tonnes

30.5 m (100 ft)

1 to 36 buckets/min
